FL02GJ-850
Product Introduction

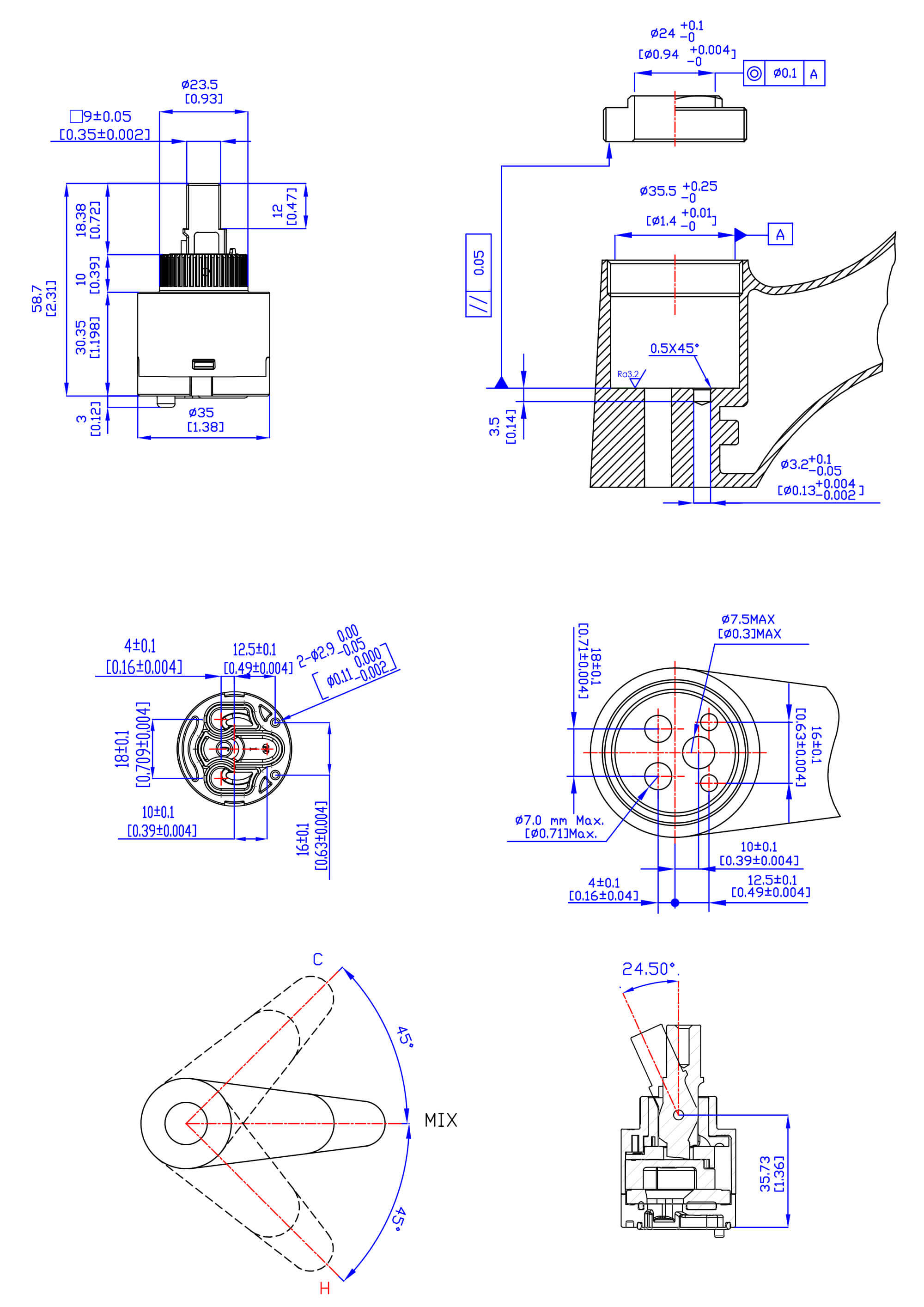

| Ceramic Cartridge Model no. FL02GJ-850/FL02BD-850 |
| Technical characteristics of the ceramic discs | |||
|---|---|---|---|
| Material | AL2O3 92%~96% | ||
| Surface roughness | Ra 0.1 ~ Ra 0.3 μm | ||
| Hardness | ＞1000 HV | ||
| Flatness | ＜0.6 μm | ||
| Technical characteristics of the cartridge | |||
| Max. opening angle | 24.5° | ||
| Max. rotary angle | 90° | ||
| Recommended nut tightening torque | 8~10 N.m | ||
| Water resistance pressure | 350~500 psi | ||
| Max. temperature | 90℃(194℉) | ||
| Endurance test | 500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817) |
||
| Flow rate | |||
| Water pressure |
Hot water (L/min) |
Cold water (L/min) |
Mixing (L/min) |
| 1 bar | 6.60 | 8.00 | 10.50 |
| 2 bar | 9.60 | 11.00 | 15.00 |
| 3 bar | 11.40 | 13.60 | 18.00 |
